Phthalic Anhydride Supplier in Malaysia
- Also known as
- PAN
- Phthalic Acid Anhydride
- 1,2-Benzenedicarboxylic Anhydride
- 1,3-Isobenzofurandione
Phthalic anhydride supplier for resin, plasticiser and pigment manufacturers in Malaysia. Known in trade as PAN and chemically as 1,2-benzenedicarboxylic anhydride (CAS 85-44-9, C8H4O3), it is a white crystalline solid with a sharp odour, usually supplied as flakes.

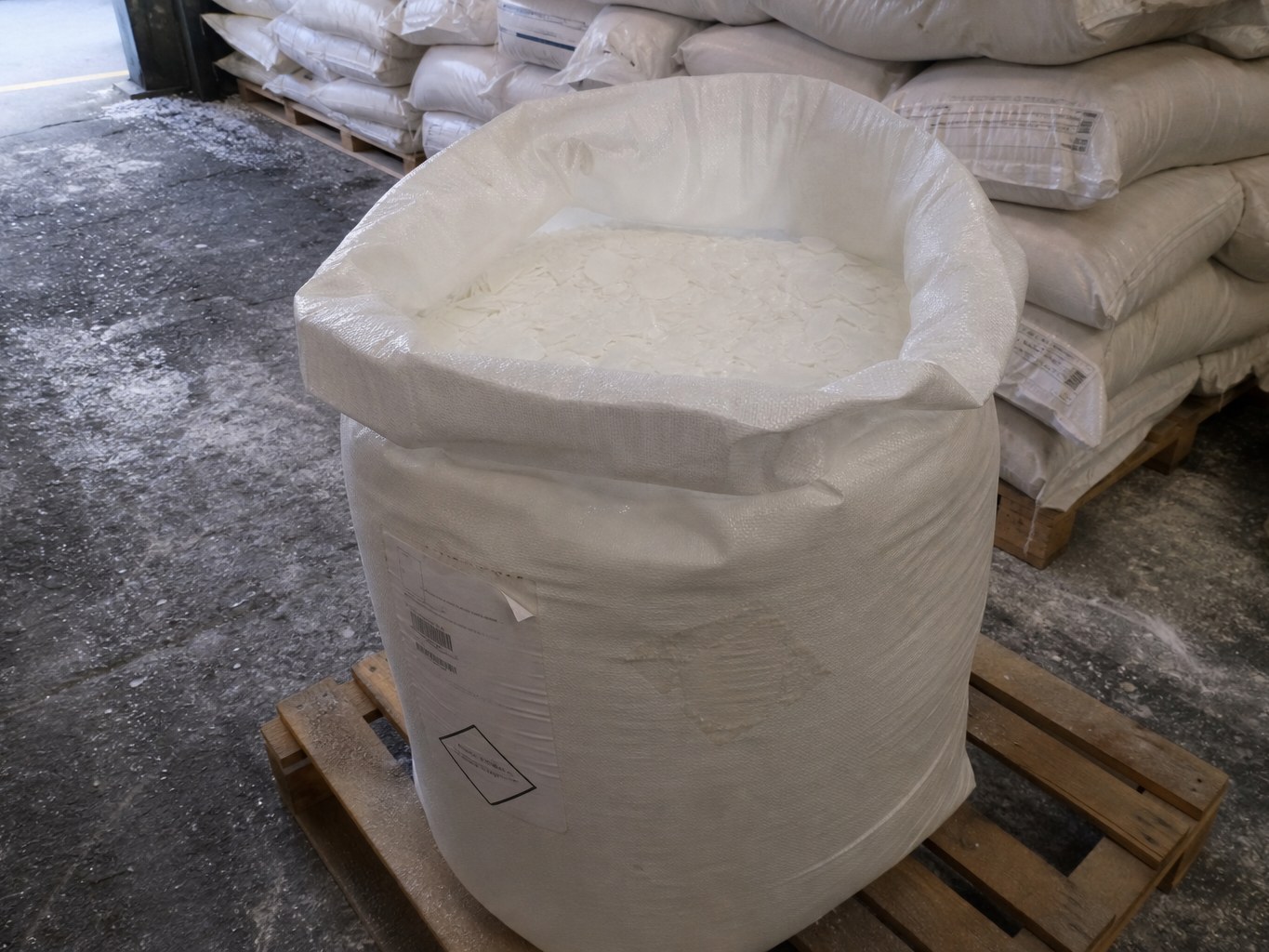

Flake is the standard commercial form for batch resin and ester plants. Larger continuous plants take molten bulk under heat, and briquette or pastille forms suit operations that want less dust. Technical grade is the normal specification.
Phthalic anhydride is the upstream raw material for unsaturated polyester and alkyd resins, phthalate plasticiser esters, polyester polyols, and anthraquinone and phthalocyanine dyes. It is not phthalic acid, and it is not a finished plasticiser such as DOP or DBP. Those esters are made from it and are ordered as separate products.
Send the required form, specification, quantity and delivery location with your enquiry. Availability, packing, documentation, route and timing are confirmed with the quotation. Supply is subject to applicable requirements.
- CAS number
- 85-44-9
- Formula
- C8H4O3
- HS code
- 2917.35
- Grade
- technical
- Appearance
- white crystalline flakes, briquettes or heated molten liquid
Phthalic Anhydride grades and forms
We supply several forms to suit different formulating and dosing setups. If you need a size that is not listed, ask us.
| Grade | Form | Assay | Typical use | Packing |
|---|---|---|---|---|
| Technical grade phthalic anhydride flakes | white crystalline flakes | — | The standard commercial form for unsaturated polyester and alkyd resin manufacture, plasticiser esterification and general batch charging where solid handling suits the plant. | Confirm the required pack format with the quotation. |
| Molten phthalic anhydride | heated molten liquid | — | Large continuous resin and plasticiser plants that receive the anhydride hot and meter it directly, avoiding a melting step. Bulk handling is arranged case by case. | — |
| Briquette or pastille phthalic anhydride | compacted briquettes or pastilles | — | Batch operations that prefer a low-dust solid to loose flake for manual or semi-automatic charging. Availability of this form should be confirmed with the enquiry. | Confirm the required pack format with the quotation. |
How to buy phthalic anhydride from ChemTrade
Request a quote for phthalic anhydride
Use the form below to request a quotation. You can also email sales@chemtrademalaysia.com or send us a message on WhatsApp.
Specifications
| Parameter | Value | Method |
|---|---|---|
| Appearance | white crystalline flakes or briquettes; clear molten liquid when heated | — |
| CAS number | 85-44-9 | — |
| Molecular formula | C8H4O3 | — |
| Molecular weight | approximately 148 g/mol | — |
| Melting point | approximately 131 °C | — |
| Chemical identity | the cyclic anhydride of phthalic acid; sublimes readily and hydrolyses back to phthalic acid on contact with moisture | — |
| Common grade checks | assay, melting range, free acid, colour of the melt and moisture as required by the grade and application | — |
Phthalic Anhydride applications
Safety and handling
- Classification
- irritant, health-hazard
Keep sealed in a cool, dry, well-ventilated place away from moisture, which converts the anhydride to phthalic acid, and away from strong bases and oxidisers. Dust and vapour may irritate the eyes, skin and respiratory tract, so control dust, avoid breathing hot vapour and follow the safety information for the grade quoted.
Common questions about phthalic anhydride
Is phthalic anhydride the same as phthalic acid?
No. Phthalic anhydride is the cyclic anhydride and reacts as an anhydride in resin and ester manufacture. Water converts it to phthalic acid, which is a separate commercial product. Order phthalic acid by name if that is what the process needs.
Is phthalic anhydride the same as DOP or another phthalate plasticiser?
No. Plasticisers such as DOP, DINP, DIDP and DBP are esters manufactured from phthalic anhydride and an alcohol. This page covers the upstream anhydride raw material, so request the finished plasticiser separately if that is the requirement.
What is the difference between phthalic anhydride and maleic anhydride?
They are different chemicals with different structures, CAS numbers and reactivity. Phthalic anhydride is the aromatic anhydride used for alkyds, ortho polyesters and phthalate esters, while maleic anhydride is the unsaturated aliphatic anhydride used where reactive double bonds are needed.
Which form should I request: flakes or molten bulk?
Flakes suit batch resin and ester plants and smaller volumes, since they need no heated receiving equipment. Molten bulk suits continuous plants with heated storage and saves a melting step. State volumes and receiving facilities with the enquiry.
Why does phthalic anhydride need dry storage?
The anhydride hydrolyses to phthalic acid when it meets water or humid air, which raises free acid and changes performance in anhydride-dependent reactions. Keep packs sealed, store dry and include any moisture or free-acid limit in the specification.
What details are needed for a phthalic anhydride price enquiry?
Provide the form, target specification, downstream process, quantity and delivery location. Mention preferred packing, documentation needs and required timing so the quotation covers the whole requirement.
